Trailer Mechanical Brake Caliper Galvanized

Use: Trailer Parts

Parts: Trailer Axles

Port: Qingdao, China

Delivery Time: 35 days

Min. Order: 100 Piece/Pieces

Payment Type: D/P, D/A, T/T, MoneyGram, Paypal, etc.

Contact Now

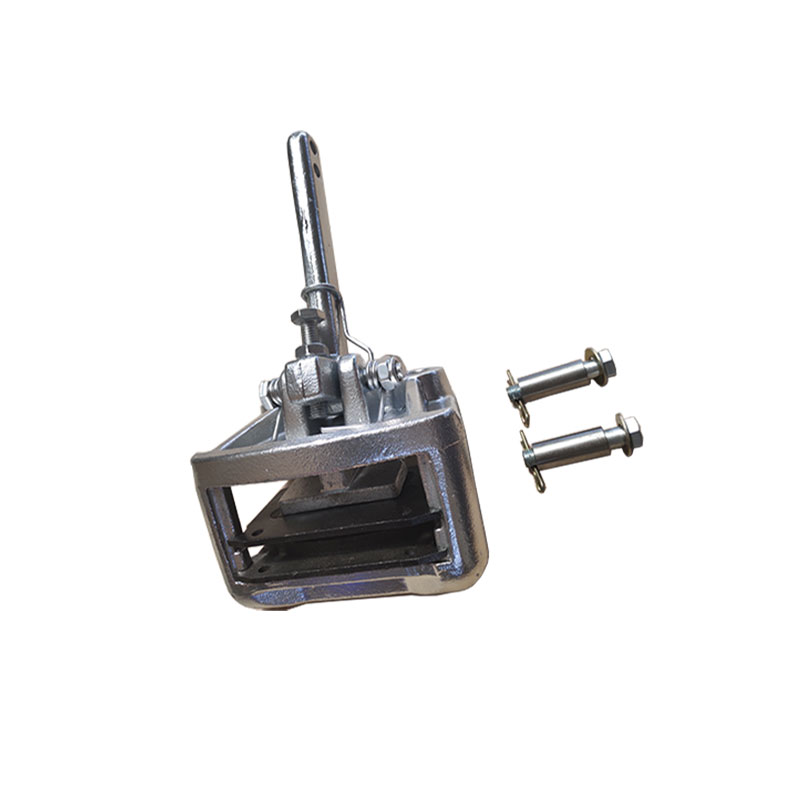

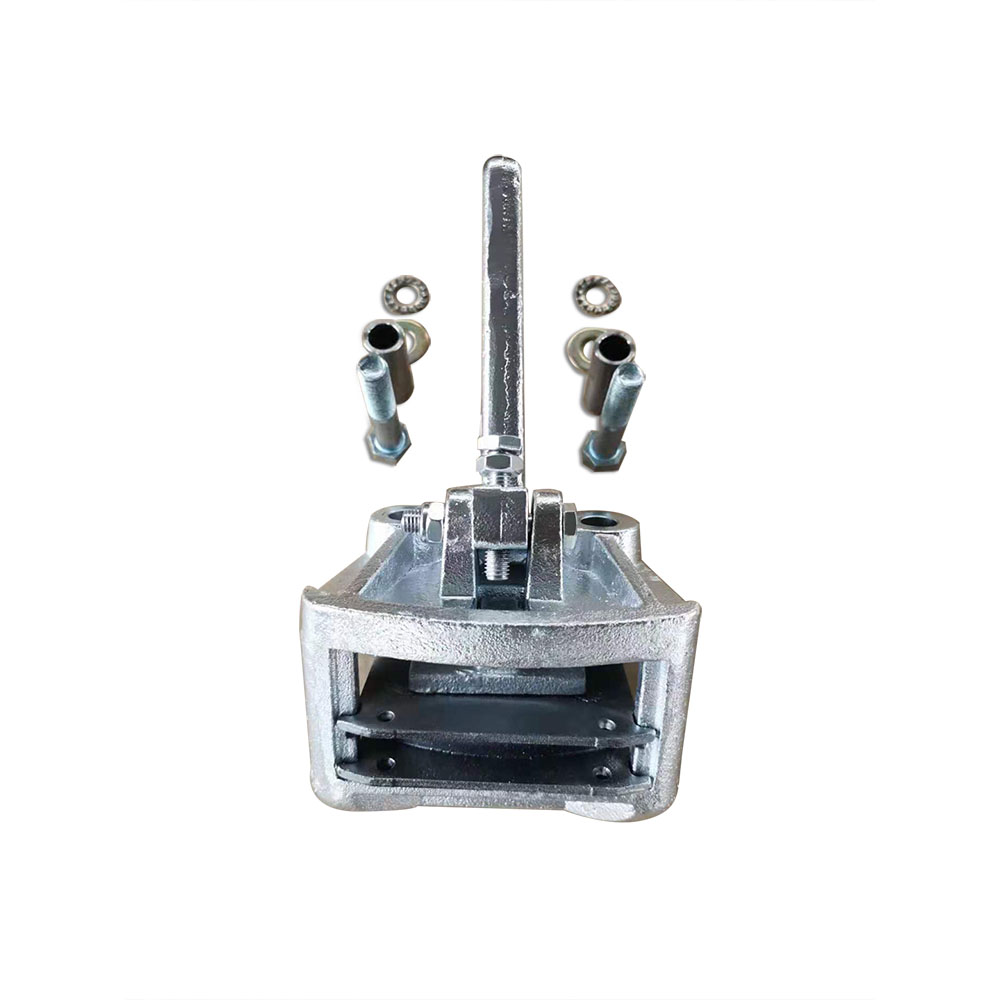

Galvanized Trailer Mechanical Disc Brake Caliper

The trailer mechanical disc brake calipers have two configurations, forwarder pull and centre pull. The forward pull is commonly used on beam/spring axle, and he centre pull is used on independent/torsion axle. The difference between these two calipers is the lever.
The mechanical centre pull brake is old version, it’s heavy duty trailer caliper. We are Chinese mechanical brake caliper exporter, there are DIY trailer mechanical disc brake kits that can be provided. Every kit contains 2 pcs of trailer brake discs, 2 pcs of brake calipers with pads and bearings etc. This caliper is made of cast iron, stainless steel is available. Other specifications are same as forward pull caliper.


Requirement of disc hubs and rotors: Thicknesses from 12mm to 15mm.
Galvanized coated and stainless steel accessories can prevent the corrosion of seawater.
Mounting bolts and pads are included. Quick and easy installation.
Mechanical Disc Brakes are more affordable than hydraulic disc brakes.
This mechanical disc brake calipers exchange with AL-KO centre pull calipers.


Brake caliper mounting plate Connecting plate

Part No.

Axle type


40mm Square


45mm Square


40mm Round


50mm Square


50mm Round


45mm Round
